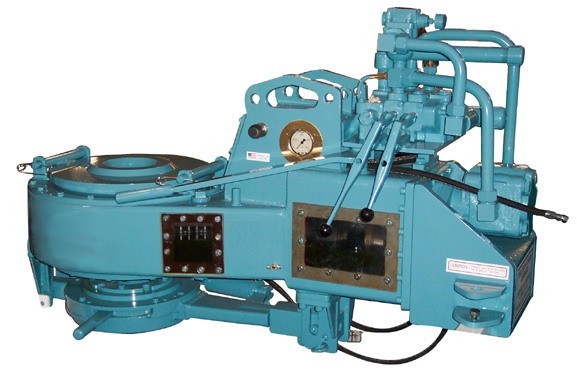

TP-82 copy of Foster 58-93R

Owners Manual for 58-93r / TP-82

Light Drill Pipe, Casing, Tubing Jaw Sizes Available: 1 5/16" to 7" O.D. 300 to 12,000 Ft. Lbs Torque

DETAILED PARTS BREAKDOWN AT WWW.USAOFS.COM

Torque range high gear........................300-1,500 ft.lbs.
Max. torque low gear...........................6,000 ft. lbs.
RPM high/low......................................130/19*
Length (A)..........................................61"
Space required on pipe (B)...................9.5"
with Back-up (C).................................18"
Max. elevator dia.................................40"
C.L. of Pipe to C.L. of Anchor...............43 5/8"
Weight approx:..................................1,440 Lbs.
Torque reactive force at anchor............3,225 Lbs.

*(RPM based on published requirements of motor manufacturer 30 GPM to tong motor)
