TP-94 Foster style 54-93

Light Drill Pipe, Casing, Tubing
oilfield equipment
Jaw Sizes Available: 1 5/16" thru 7" O.D. 300 to 12,000 Ft. Lbs Torque

VISIT WWW.USAOFS.COM FOR PARTS LIST AND BREAKDOWN!

Torque range high gear ..................................................300 to 1,500 ft.lbs.
Max. torque low gear ............................................................12,000 ft. lbs.
RPM high/low ...............................................................................130/19*
Length (A) ............................................................................................61"
Space required on pipe (B)..................................................................9.5"
with Back-up (C)..................................................................................18"
Max. elevator dia. .................................................................................40"
C.L. of Pipe to C.L. of anchor (D)....................................................43 5/8"
Weight approx. ..........................................................................1,440 Lbs.
Torque reactive force at anchor in..............................................3,225 Lbs.

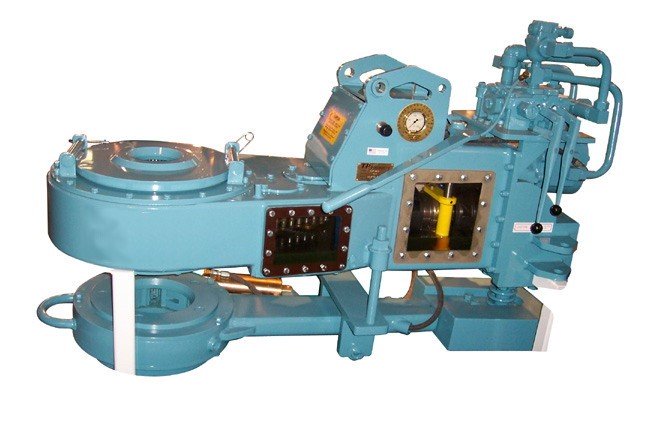

*(RPM based on published requirements of motor manufacturer 30 GPM to tong motor)(See through clutch and final drive covers for display only. Actual tong comes with metal cover.)
